Product Details
＋

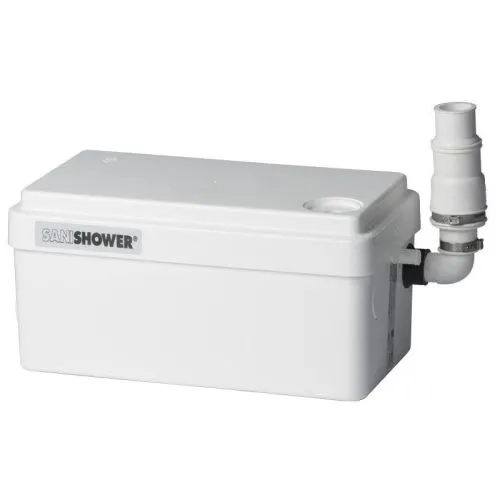

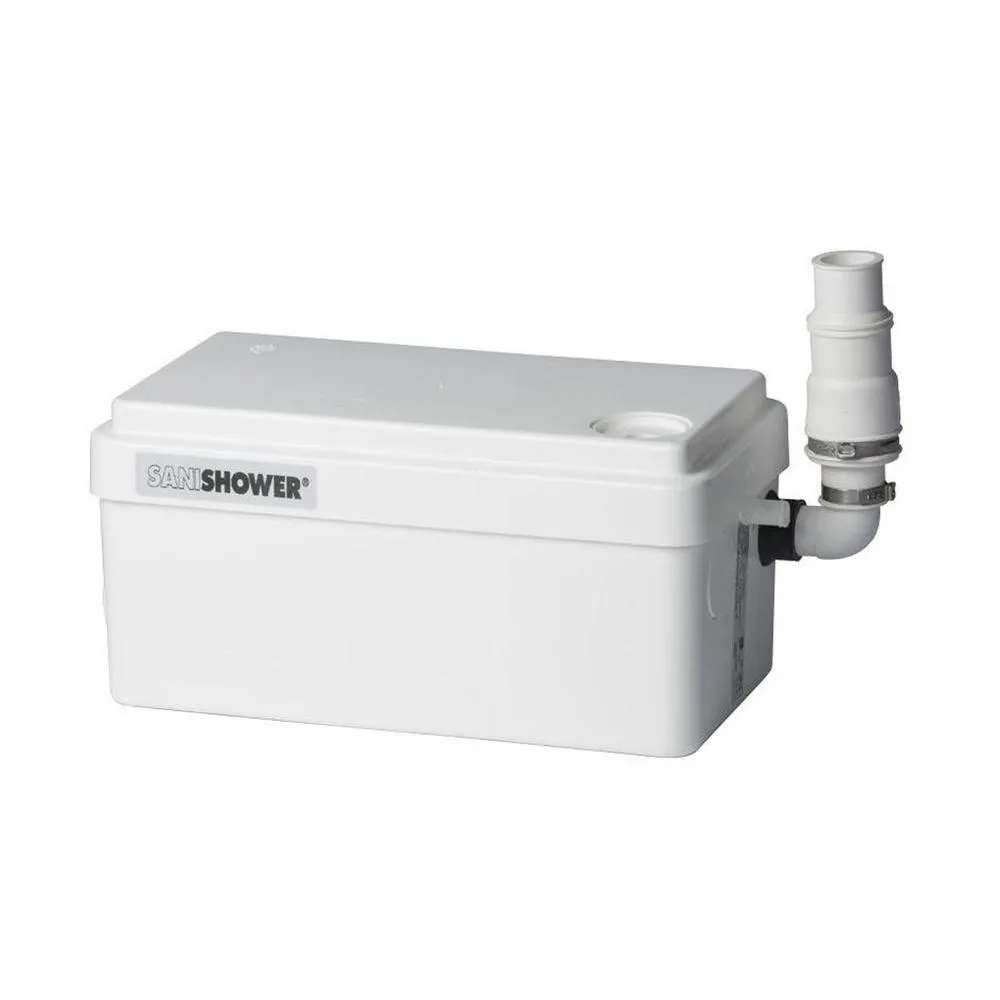

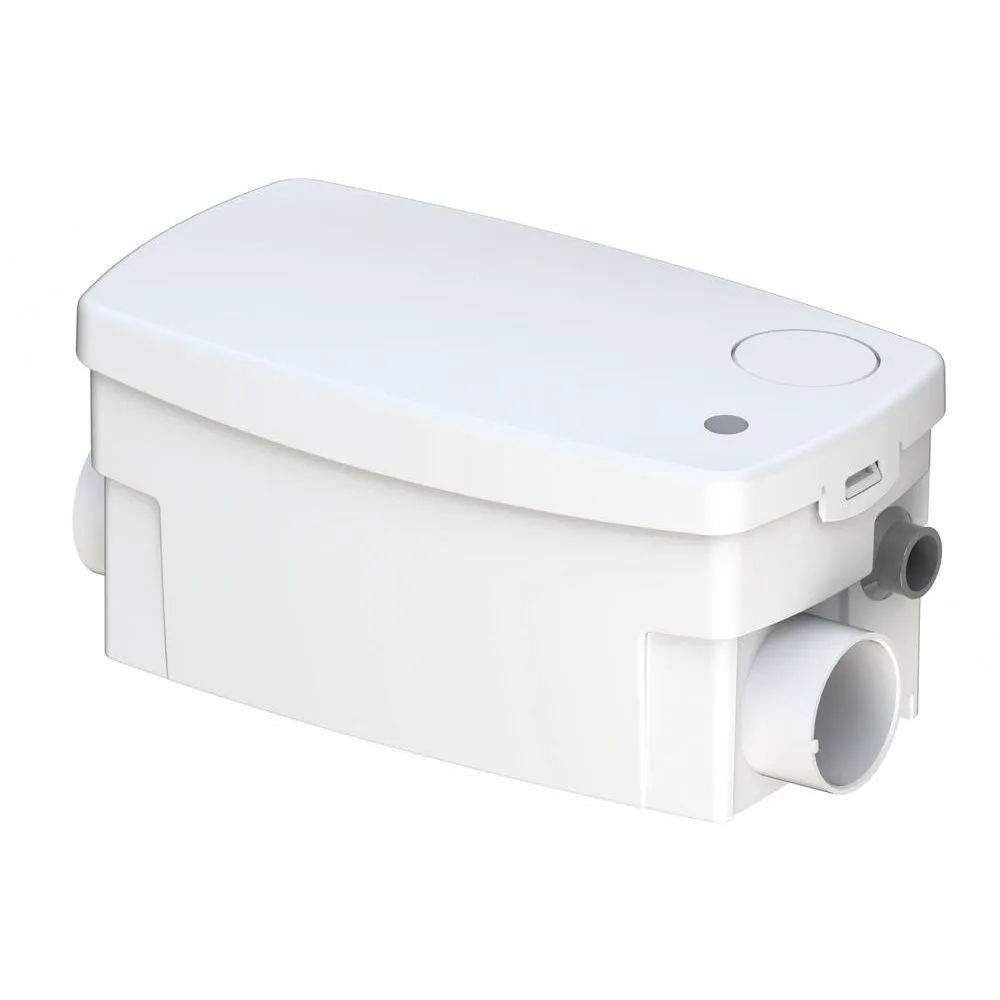

The Sanishower is a small gray water pump that may be used to pump waste water away from a shower, sink, bar sink, or other fixture. The Sanishower is small enough to fit underneath a raised shower base. Alternatively, it can be placed behind a wall or beside a shower. The Sanishower will pump wastewater up to 12 feet in height and/or 100 feet away from a soil stack.
- Due to its quiet operation and ease of installation, they have become the choice of OEM’s
- Inside of the Sanishower is comprised of a pressure chamber, which starts and stops the unit, and the motor, which drives the pump
- Discharge elbow on the side of the Sanishower can be rotated 360 degrees to fit any type of installation required
- Please note that the vent system should be a two-way air vent
- Highly recommended for the gray water pump to be connected to a Ground Fault Interrupter (GFI) circuit

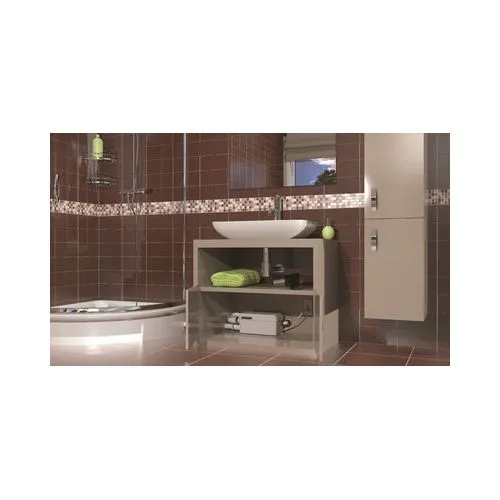

- Sanishower is small enough to fit comfortably inside a kitchen cabinet or vanity or even under a raised shower base
- Horizontal discharge (ft.) 100
- Vertical discharge (ft.) 12
- Maximum Pumping Height (ft.): 14
- Product Depth (in.): 6.375
- Product Height (in.): 5.75
- Product Width (in.): 11.625
- Adjustable Speed: No
- Amperage (amps): 5
- Cord Length (ft.): 0
- Corrosion Resistant: Yes
- Discharge Flow @ 0 ft. (gallons/hour): 0
- Discharge Flow @ 10 ft. (gallons/hour): 0
- Float Switch: No
- Hardware Included: No
- Head Pressure (ft.): 0
- Horsepower (hp): 1/5 hp
- Housing Material: Other
- Inlet Connection: Plain end
- Maximum Discharge Flow (gallons/hour): 0
- Maximum Working Temperature (F): 104
- Minimum working temperature (F): 0
- Outlet Connection: Plain end
- Power Type: Electric
- Power Type Required: AC
- Product Weight (lb.): 12lb
- Pump Switch Type: Electronic
- Run-Dry Capable: No
- Self-Priming: Yes
- Submersible: No
- Voltage (volts): 120
- Certifications and Listings: CSA Listed
Product Dimensions:
9.00 x 8.00 x 14.00 in
15.00 lbs
Shipping Dimensions:
13.40 x 8.30 x 8.90 in
